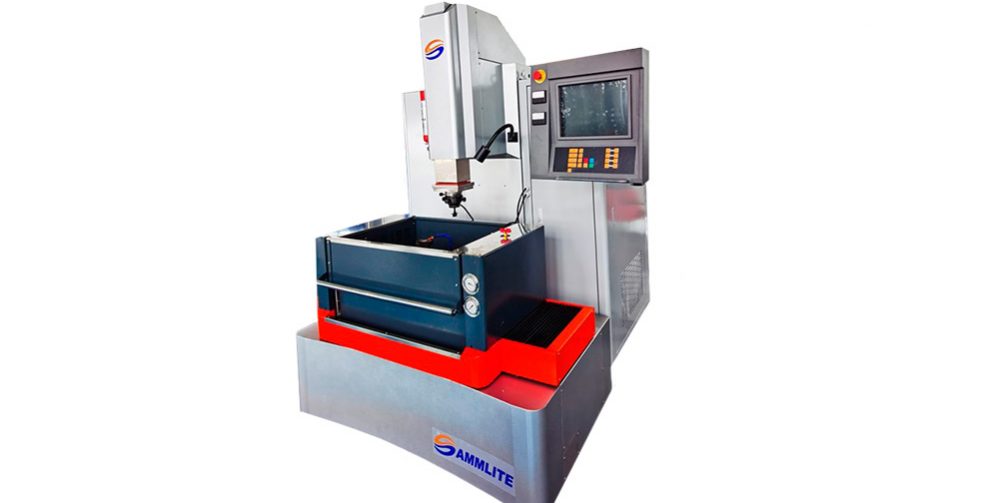

The system is equipped with a rich database of process software a combination of electrodes and workpieces for automated and manual processing of wide range of materials:
Especially for the processing of some special materials, this machines provides users with a wide choice of space: such as machining hard alloy materials, power has a strong pertinence, processing surface deterioration layer, surface hardness has a small impact.
ESPECIFICACIONES
Workbench size (length x width)
(mm)
550 x 350
X/Y/Z axis travel
(mm)
400 x 300 x 250
Internal dimensions of the processing tank
(mm)
750 x 600 x 350
Positioning accuracy
0.01 mm
(inspection standard GB / T5291.1-2001)
Maximum electrode weight
(kg)
50
Maximum workpiece weight
(kg)
300
Maximum processing current …….. 40 A
Best surface roughness………………Ra≤0.1µm
